Series 1010.50

Catalog sheet

Request

Tip style

Hlavice hrotu A_01.png
A
0,72CRh
Hlavice hrotu B_01 Ni_Rh.png
B
0,72CRh
Hlavice hrotu G3.png
G3
0,72CRh
Hlavice hrotu K.png
K
1,30CRh
1,50CRh

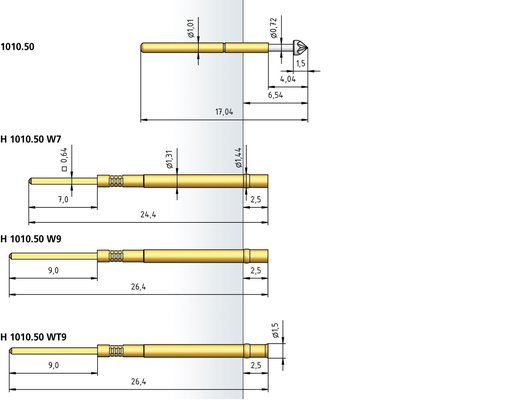

Mechanical data
Center 1.91 mm
Tip body diameter 1.01 mm
Total tip length 17.04 mm
Temperature range -40°C - +250°C
Full travel 2.54 mm
Pre-loaded spring force 0.18 | 0.32 N
Spring force at working travel 0.80 | 1.25 N
Electrical data
Max. current rating
(Receptacle-plunger)		 3.00 A
Materials
Barrel Bronze, gold-plated
Spring Stainless Steel, unplated
Plunger CuBe, rhodium plated
Receptacle Bronze, gold-plated
Recommended diameter of drill
TROLITAX 1,30
HGW 1,31
