Tip style

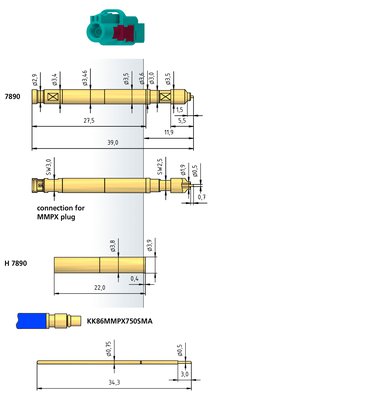

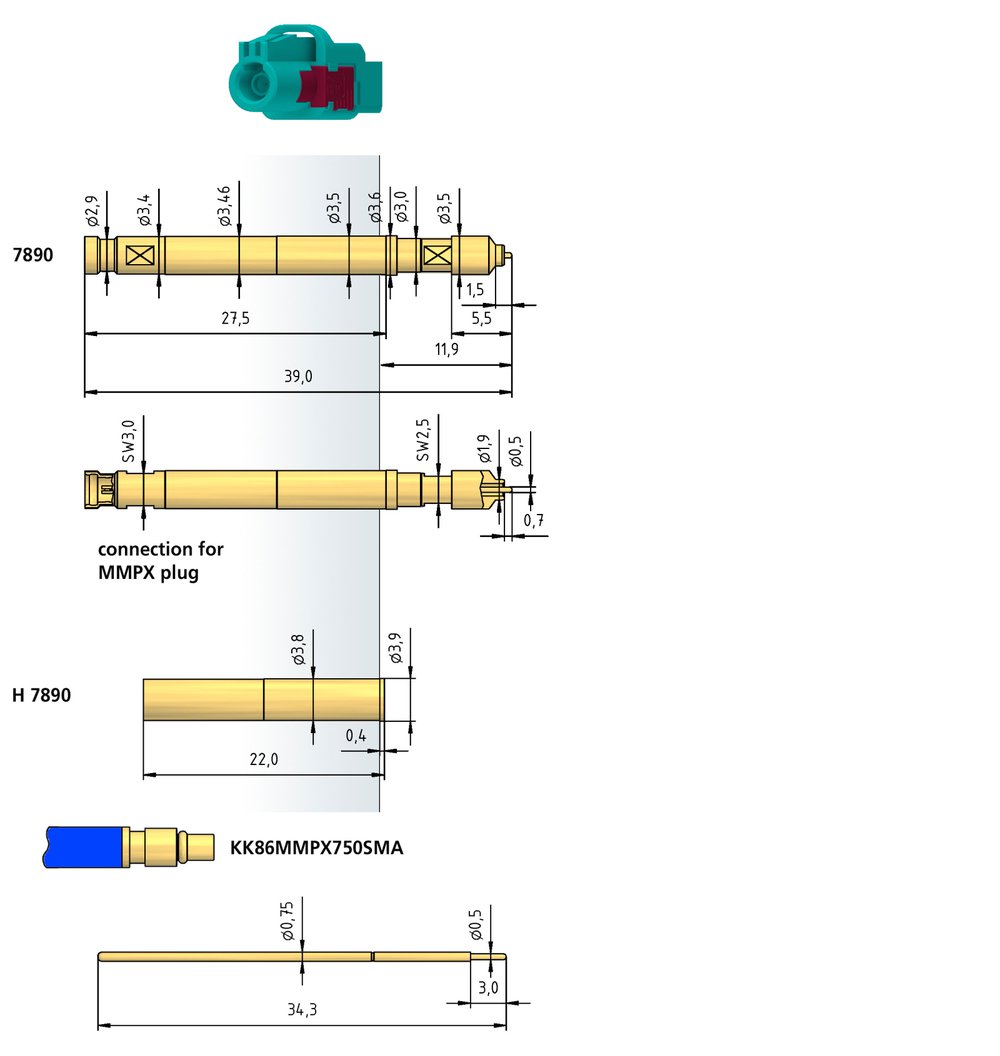

Mechanical data
| Tip body diameter | 3.50 mm |
| Total tip length | 39.00 mm |
| Full travel | 5.00 mm |
| Working travel | 4.00 mm |
Electrical data
| Frequency range | do 9 GHz |
| Impedance | 50.00 mΩ |
Materials
| Barrel | Brass, gold-plated |
| Spring | Steel, gold-plated |
| Plunger | CuBe, gold-plated |
