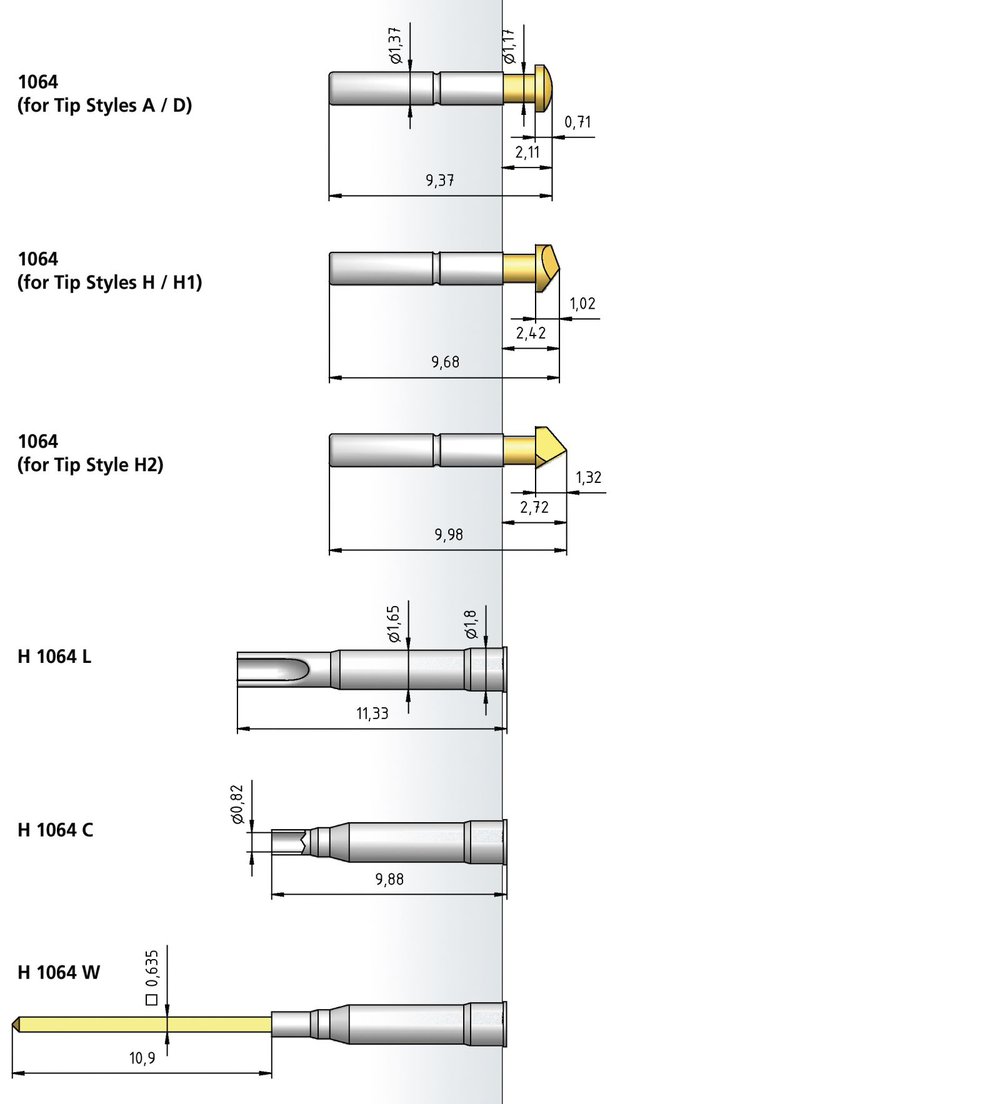

Tip style
A
| 1,96C | Au |
D
| 1,17C | Au |
D
| 1,96C | Au |
H
| 3,30C | Au |
H
| 3,96C | Au |
H
| 1,96C | Au |
H1
| 1,57C | Au |
H1
| 2,49C | Au |
H2
| 1,96C | Au |
Mechanical data
| Center | 2.54 mm |
| Tip body diameter | 1.37 mm |
| Total tip length | 9.37 mm |
| Temperature range | -30°C - +120°C |
| Full travel | 1.27 mm |
| Working travel | 1.27 mm |
| Pre-loaded spring force | 0.35 N |
| Spring force at working travel | 1.25 N |
Electrical data
| Max. current rating (Receptacle-plunger) |
5.00 A |
Materials
| Barrel | Nickel Silver, non plated |
| Spring | Spring Steel, gold-plated |
| Plunger | CuBe, gold-plated |
| Receptacle | Nickel Silver, non plated |
Recommended diameter of drill
| TROLITAX | 1,75 |
| HGW | 1,75 |
Available screw tools
| WHE 265 |
| WHE 300 |
