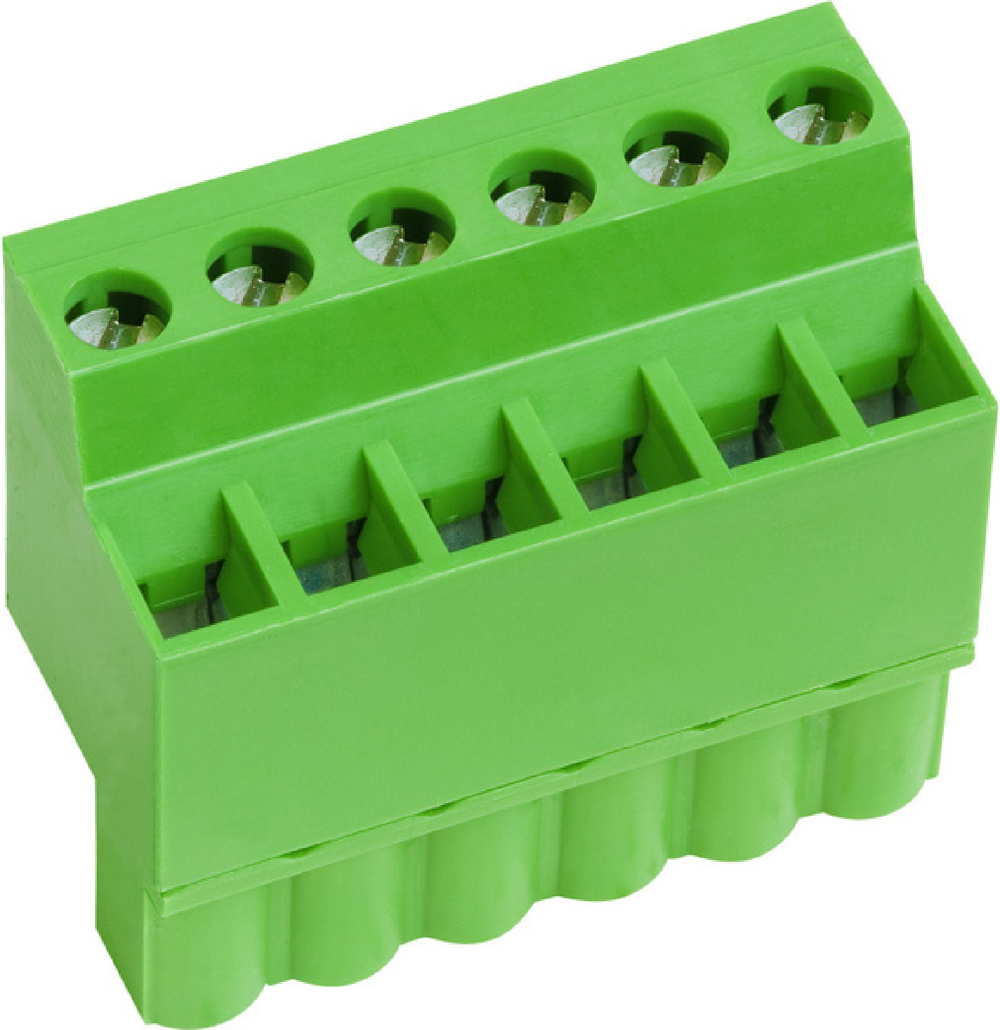

AKZ1200/..-10.16-GREEN


AKZ1200/..-10.16-GREEN

Request

Counterparts

STLZ950/..-10.16-V-GREEN
STLZ950/..-10.16-H-GREEN
STLZ950/..G-10.16-V-GREEN
STLZ950/..G-10.16-H-GREEN
STLZ970/..-10.16-V-GREEN
STLZ970/..-10.16-H-GREEN
STLZ970/..G-10.16-V-GREEN
STLZ970/..G-10.16-H-GREEN
STLZ990/..-10.16-GREEN
STLZ990/..G-10.16-GREEN
AKZS950/..G-10.16-GREEN
AKZS950/..GMB-10.16-GREEN

Accessories

Picture Description Article number
Svorkovnice prislusenstvi 50000000021.jpg

Coding Star CS1-5.0/5.08-RED

The tongues of the coding star are inserted into the coding slits of the terminal block to prevent the multi-connector from being plugged in incorrectly

50000000021
Mechanical data
Solid min. 0.20 mm²
Solid max. 4.00 mm²
Stranded (flexible) min. 0.20 mm²
Stranded (flexible) max. 2.50 mm²
Stranded with ferrule min. 0.25 mm²
Stranded with ferrule max. 2.50 mm²

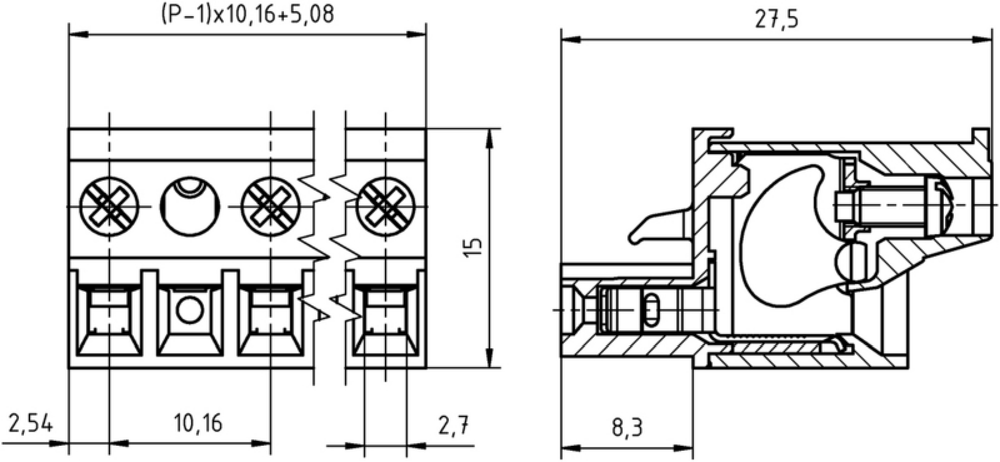

Dimensions
Stripped length 10.00 mm
Materials
Screw Steel
Insulating material
Materials PA 6.6
Flammability class UL 94 V-0
Temperatures
Operating temperature -40°C - +105°C
Colours
Green - RAL 6018
Light green - RAL 6018
Pebble grey - RAL 7032
